Instruction:

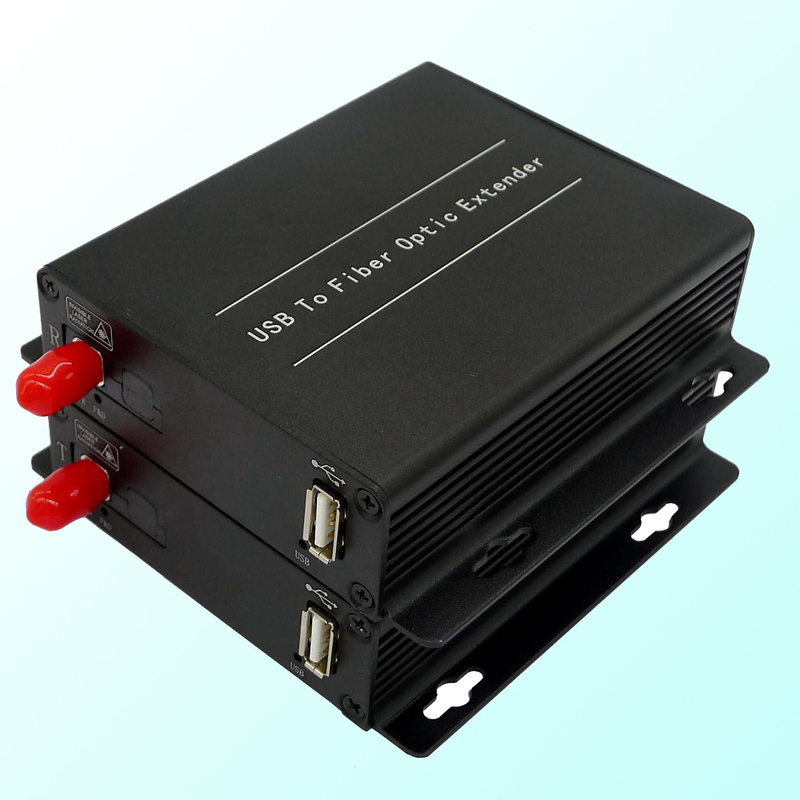

BY-USB-114 is designed for Extending Orientalmotor Controllers over Optic Fiber. The device includes a transmitter and a receiver, which can extend USB 2.0 device to a remote location over 1 fiber cable, max distance 5 Kilometers.

Features:

• Max extension distance 5 Kilometers (3.1 Miles) over 1 Single-mode Fiber or Multimode Fiber.

• Single fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play

• Auto recognition of High-speed（25Mbps～480Mbps）、Full-speed（500Kbps～12Mbps）、Low-speed（10Kbps～1.5Mbps）USB device.

Specification:

Optical:

Optical Connector:1 x ST,   FC and SC are optional

Wave length1310nm/1550nm

Support Fiber types: 50/125μm(MMF), 62.5/125μm(MMF),   9/125μm(SMF)

Physical:

Size (L× W ×H):104mm x104mm x28mm

Case:Aluminum

Color:Black

N.W.:0.75Kg

Power Voltage: 5V DC

Transmitter consumption:<10W

Receiver power consumption(Powered by usb cable, no external power adapter required):   <5W

Environment

Working temperature:-20℃-70℃

Storage temperature:-40-85℃

Humidity:0-95% (non-condensing)

USB interface(Type A):

RX: 1 port, connect to PC

TX:1 port, connect to USB device

Package:

1. 1 x transmitter (client side).

2. 1 x receiver (host side).

3. 1 x Power Adapter.

About shipment:

After order confirmed, we will dispatch the goods within 1~2 days by DHL for one week arrival.

Connection Diagram:

Dimension:
