Features:

• Robust error free transmission of uncompressed signals, 10+Km (6.2 Miles) at SMF.

• Under worst-case conditions and 3Gbps video pathological signals

• Supports video pathological patterns for SD-SDI,HD-SDI and 3G-SDI

• Digital diagnostics (DDM) and control via I2C interface, MSA pin assignment, hot plugable.

Description:

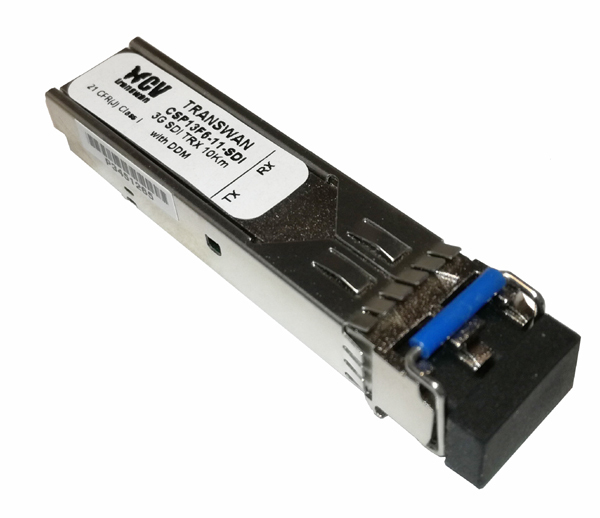

CSP13F6-11-SDI is the optical transceiver modules designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006.

They are specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.

Specification:

Bit Rate: 50M~2.97Gpbs

Transmitter wavelength: 1310nm Tx

Receive wavelength: 1260~1620nm

Output power: -7~0db

Sensitivity:<-21db

DDM: Yes

Connector: Dual LC

Distance: 10Km+ (6.2 Miles)

Working temperature: 0~70'C

PIN assignment: MSA standard

Gross weight: 25g

Pin Asignment MSA:

Datasheet:

CSP13F6-11-SDI:   3G SDI video SFP transceiver 10Km
