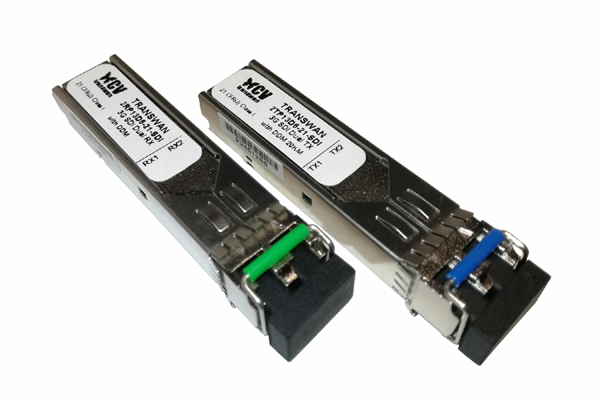

3G SDI dual Tx CWDM wavelength
3G SDI dual Tx CWDM wavelength
3G SDI dual Tx CWDM wavelength
- Detail
- Parameters
Features:
SMPTE 297-2006 compatible
Robust error-free transmission of signals from 50Mbps to 3Gbps with up to 40km single-mode fiber
Maximum distance of 40km under worst-case conditions and 3Gbps video pathological signals
Supports video pathological patterns for SD-SDI,HD-SDI and 3G-SDI
SFP Package.Hot-pluggable
Metal enclosure for lower EMI
+3.3V single power supply.
Two independent laser disable pins
Digital diagnostics and control via I²C interface, including:
Monitoring laser bias current, average output power, supply voltage and temperature
Alarm reporting when transmitter is at fault
Module ID polling
Compliant ROHS and lead free
Descriptions:
The 2TPXXYYD6-11-SDI is a dual channel optical CWDM transmitter module designed to transmit optical serial digital signals as defined in SMPTE 297-2006. The 2TPXXYYD6-11-SDI is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates.
Ordering Information:
2TPXX YYD6-11-SDI
Transmitter #2 Wavelength
27=1270nm 29=1290nm 31=1310nm 33=1330nm
35=1350nm 37=1370nm 39=1390nm 41=1410nm
47=1470nm 49=1490nm 51=1510nm 53=1530nm
55=1550nm 57=1570nm 59=1590nm 61=1610nm
Transmitter #1 Wavelength
27=1270nm 29=1290nm 31=1310nm 33=1330nm
35=1350nm 37=1370nm 39=1390nm 41=1410nm
47=1470nm 49=1490nm 51=1510nm 53=1530nm
55=1550nm 57=1570nm 59=1590nm 61=1610nm
Specifications:
Bit Rate: 50Mbps~3.0Gpbs
2TPXXYYD6-11-SDI Transmitter wavelength: one of 1270~1610nm DFB Tx1, one of 1270~1610nm DFB Tx2
2TPXXYYD6-11-SDI Output power: Tx1: -5~0db Tx2: -5~0db
DDM: Yes
Connector: 2 x LC
Distance: 20Km (12.40 Miles)
Working temperature: 0~70'C
PIN assignment: Non-MSA, but Compatible with Gennum
Gross weight: 50g for 2 pieces
Pin Assignments:
Datasheet:
2TPXXYYD6-11-SDI : 3G SDI video SFP Dual CWDM Tx 20Km
