Features:

• SMPTE 424M/297M/259M/292M compliant.

• Robust error free transmission of uncompressed signals

• under worst-case conditions and 3Gbps video pathological signals

• Supports video pathological patterns for SD-SDI,HD-SDI and 3G-SDI

• SFP Package.Hot-pluggable

• Laser disable pin

• Digital diagnostics (DDM) and control via I2C interface

Description:

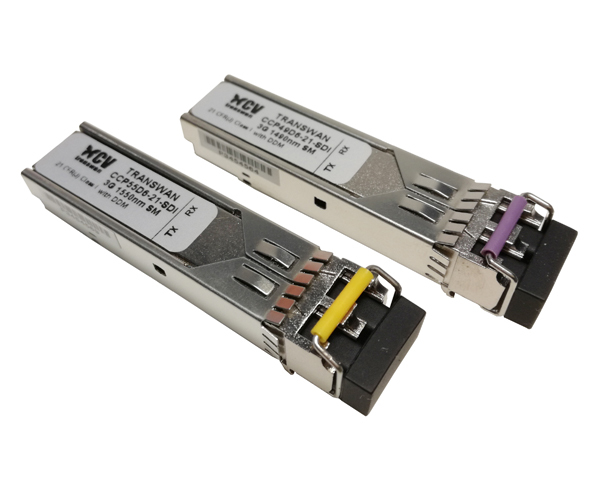

CCPxxD6-21-SDI is a single channel optical transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006. The CCPXXD6-21-SDI is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.

Specifications:

Bit Rate: 50~3000Mbps

Transmitter wavelength: CWDM 1470,1490,1510,1530,1550,1570, 1590, 1610nm optional

Receive wavelength: 1260~1620nm

Output power: -5~0db

Saturation:>-6db

DDM: Yes

Connector: Dual LC

Distance: 20Km

Working temperature: 0~70'C

PIN assignment:   MSA standard

Pin Assignment MSA:

Datasheet:;

CCPxxD6-21-SDI: 3G SDI 1470~1610nm CWDM SFP 20Km

Sell on Amazon, worldwide delivery:

Part Number	links on www.amazon.com	QR codes of this amazon link
CCP55D6-21-SDI (1550nm CWDM)	https://www.amazon.com/dp/B07BTVZ6BL?ref=myi_title_dp
CCP53D6-21-SDI (1530nm CWDM)	https://www.amazon.com/dp/B07C9SPJSG?ref=myi_title_dp
CCP51D6-21-SDI (1510nm CWDM)	https://www.amazon.com/dp/B07BV67FYK?ref=myi_title_dp
CCP49D6-21-SDI (1490nm CWDM)	https://www.amazon.com/dp/B07BV66PDX?ref=myi_title_dp
CCPxxD6-21-SDI (includes 1470,1490,1510,1530,1550,1570,1590,1610)	https://www.amazon.com/dp/B079DQCSGM?ref=myi_title_dp
