Features:

• Robust error free transmission of uncompressed signals, 10+Km (6.2 Miles) over Single Mode Fiber.

• Under worst-case conditions and 3Gbps video pathological signals

• Supports video pathological patterns for SD-SDI,HD-SDI and 3G-SDI

• Digital diagnostics (DDM) and control via I2C interface, hot plugable.

Description:

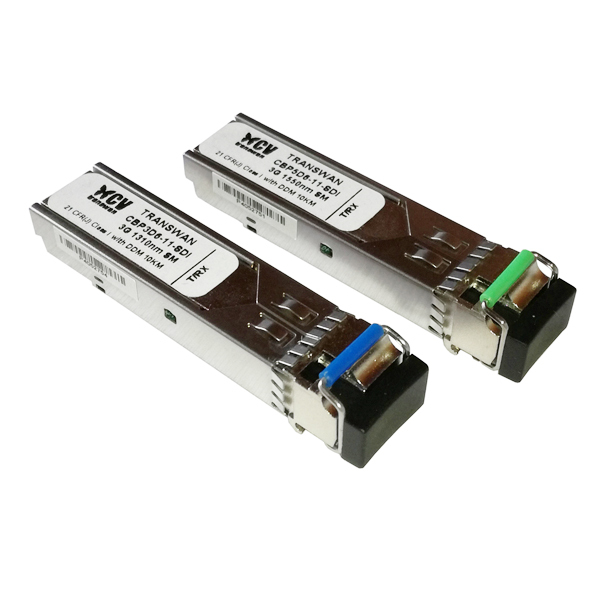

CBP5D6-11-SDI /CBP5D6-11-SDI is a Bi-directional optical transceiver module designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006. They are specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.

Specifications:

Bit Rate: 50M~2.97Gpbs

Transmitter wavelength:

CBP5D6-11-SDI: 1550nm DFB laser Tx/1310nm Rx

CBP3D6-11-SDI: 1310nm DFB laser Tx/1550nm Rx

Receive wavelength: 1260~1360nm

Output power: -8~-2db

DDM: Yes

Connector: single LC

Distance: 10Km, for longer distance like 40KM, 60Km,   please contact us

Working temperature: 0~70'C

PIN assignment: MSA standard

Gross weight: 50g for 2 pieces

Pin Assignment MSA:

Datasheet:

CBP5D6-11-SDI: 3G SDI video SFP Bi-directional 1550nm Tx /1310nm Rx 10Km

CBP3D6-11-SDI: 3G SDI video SFP Bi-directional 1310nm Tx /1550nm Rx 10Km
