Features:

• Pin assignment is compatible with Gennum's.

• Robust error free transmission of uncompressed signals, 20 Km (12.4 Miles) over Singlemode Fiber.

• Supports video pathological patterns for SD-SDI,HD-SDI and 3G-SDI,Two independent laser pins

• Digital diagnostics (DDM) and control via I2C interface.

Description:

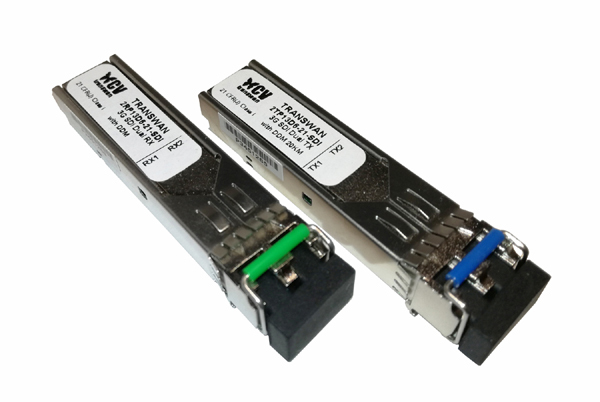

2TP35D6-11-SDI and 2RP13F6-11-SDI   are the dual transmitter and dual receiver modules designed to transmit and receive optical serial digital signals as defined in SMPTE 297-2006.

They are specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M,SMPTE 292M and SMPTE 424M serial rates.

Specifications:

Bit Rate: 50Mbps~3.0Gpbs

2TP35D6-11-SDI Transmitter wavelength: 1310nm DFB Tx1, 1550nm DFB Tx2

2RP13F6-11-SDI Receive wavelength: 1260~1620nm Rx1, 1260~1620nm Rx2

2TP35D6-11-SDI Output power: Tx1: -5~0db   Tx2: -5~0db

2RP13F6-11-SDI Sensitivity: Rx1: -21db   Rx2: -21db

DDM: Yes

Connector: 2 x LC

Distance: 20Km (12.40 Miles)

Working temperature: 0~70'C

PIN assignment: Non-MSA, but Compatible with Gennum

Gross weight: 50g for 2 pieces

Pin Assignment MSA:

Datasheets:

2TP35D6-11-SDI: 3G SDI video SFP Dual Transmitter   1310nm DFB Tx1, 1550nm DFB Tx2

2RP13F6-11-SDI:   3G SDI video SFP Dual Receive 1260~1620nm Rx1, 1260~1620nm Rx2
