Description:

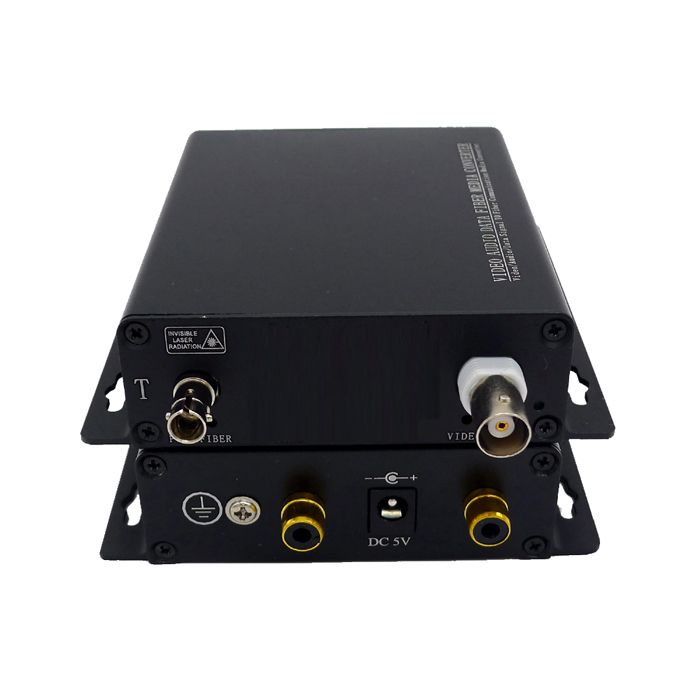

BY-RCA-285 includes optical transmitter and receiver, they are directly compatible with NTSC/PAL/SECAM camera systems.

Features:

1). 1 Ch Video over Fiber, supports 8-Bit Uncompressed Video,   NTSC, PAL or SECAM Video Compatible

2). 2 Ch RCA Audio over Fiber,   suppots 24-Bit Digitally Encoded Audio

3). Support Point-to-Point or Daisy-Chain connection

4). Distance: 20Km Single-mode Fiber or 2Km Multi-mode Fiber

5). No EMI, RFI, Cross Talk or Video Distortion and no ground loops; LED Indicators for Instant System Monitoring; Standalone or Rack Mount in FVC14 Chassis

Applications:

Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV etc

Specifications

Audio:

Channels: 2 Ch

Input/output Impedance:   600ohm(unbalanced)

Max input/output voltage: 3.0Vp-p

Frequency Response: 10 Hz～29kHz @±3dB

SNR: > 70dB

Connector: RCA

Video

Number of Channels: 1

Input/output impedance: BNC 75Ω (unbalance)

Video bandwidth: 5HZ—7.5 Mhz

Standard video input/output voltage: 1.0Vp-p

Video voltage range: 0.6~2.0Vp-p

Differential Gain: < ±1.5%

Differential Phase: < ±1°

Electrical & Mechanical:

Input Power Requirements: DC 5V@2A

Power Adapter: AC 900V~240V

Power Consumption: < 3W

Stand-Alone Dimensions: 104 mm × 104 mm × 28 mm

Shipping Weight: (include Transmitter & Receiver ) 0.8kg

Environmental:

Operating Temperature: -20°C ~ +75°C

Storage Temperature: -40°C ~ +85°C

Relative Humidity: 0% ~ 95% (non-condensing)

MTBF: >100,000 hours

Optical:

Wavelength: 1310nm

Optical Fiber:   Single-mode Fiber or Multi-mode Fiber

Optical Connector: 1 x ST, FC/SC(optional)

Distance:   20Km (SMF), 2Km (MMF)

Connection & Dimension
