BY-EFP-398 for Sony / Panasonic Remote control
BY-EFP-398 for Sony / Panasonic Remote control
BY-EFP-398 for Sony / Panasonic Remote control
- Detail
- Parameters
EFP Fibre Transport 12G/3G-SDI, Audio,Intercom, Data, Genlock, Ethernet, Tally is a new portable fibre interface designed for use in Outside Broadcast and special events. A mixture of video and audio signals are combined to provide a flexible and cost effective solution for many production applications. it is specifically designed to mount on the back of a broadcast camera offering full comms, control and genlock plus Multi-Channels 12G / 3G-SDI signals.
BY-EFP-398 for Sony camera includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI), Reverse video（SDI or CVBS）,Sony Remote control data（compatible with the camera control unit RM-B150, RM-B170 or RM-B750,or Panasonic RCU AJ-RC10G、ECU AG-EC4G）, TC/BB/Genlock, intercom(Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station), tally(One color or two colors can be selected). The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM / MM tactical or SMPTE hybrid fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.
Features:
1) Handle all Pathological patterns
2) Automatic cable equalization to ensure signal integrity
3) 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
4) 10+Km on single mode fiber or 300m on multimode fiber transmission
5) Mic inputs with mute and pre-amps
RS422 /RS232/RS485 remote control
Tally/GPI LED+/- output or dry Contact Closure optional
V-mount or A-mount battery plate optional
Specifications:
General index
Work Temp | -25°C to 55°C |
Storage Temp | -40°C to 85°C |
humidity | 0 ~ 95% (non-condensing) |
Camera Optic Adaptor | |
Input power | DC 11~19V |
Power consumption | <10W |
Net weight | 1kg |
Appearance size | 160mm*100mm*44mm(without V-mount / A-mount) |
Optic Base Station | |
Input power | AC90~240V |
Power consumption | <10W |
Net weight | 3kg |
Appearance size | 19” 1U standard rack mount |
Optical：
Wavelength | 1310nm / 1550nm / CWDM |
Output Power | -6~-1dBm |
Rx sensitivity | <-18dBm |
Transmission Distance | SM fiber 10+km , MM fiber 300m |
Optical connector | Dul LC /FC/ST/SC/ Lemo / Neutrik (optional) |
SDI input/output:
Signal format | SMPTE 424M, SMPTE 292M, SMPTE 259M |
Data rate | 270Mbit/s - 1.48Gbit/s - 3Gbit/s |
Cable Equalization | Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
SDI interface | BNC 75 Ohm |
Intercom:
Camera Optic Adaptor | |
Interface | 4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack |
Microphone | Mic inputs with mute and pre-amps |
Headphone | with volume up or down |
Optic Base Station | |
Interface | 3pin XLR Female/Male: Party line audio for Clearcom or RTS Intercom main station DB9(Male): Line level audio input and output, |
Tally:
Camera Optic Adaptor | |
Interface | 4pin air head or 3pin mini XLR |
Output | Dry Contact Closure or wet LED+/- |
On: short or LED on Off: open or LED off | |
Optic Base Station | |
Interface | DB9(Male) |
Input | Dry Contact Closure or TTL |
On: short to GND or TTL low Off: open or TTL high | |
Remote:
Camera Optic Adaptor | |
Interface | 8pin air head or 8pin sony’s remote interface |
Data | RS422 /RS232/RS485 |
Optic Base Station | |
Interface | DB9(Female) or 8pin sony’s remote interface |
Data | RS422 /RS232/RS485 |

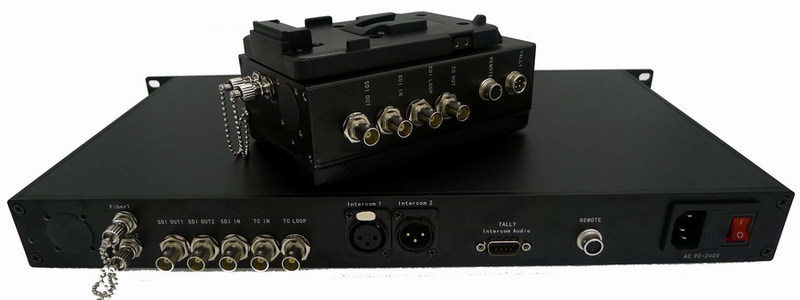

Panel diagram：
(please enlarge the same photo at the headline)
Camera Optic Adaptor
Optic Base Station
