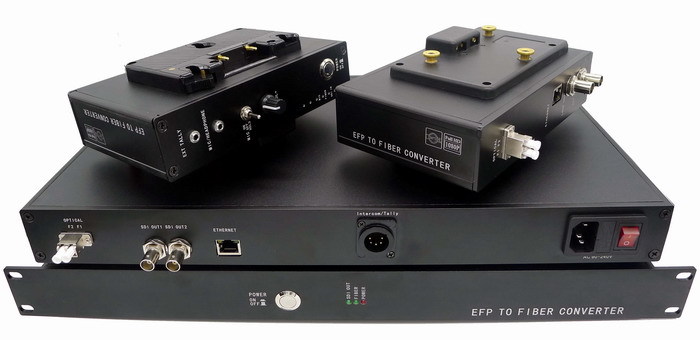

EFP Fibre Transport 12G/3G-SDI, Audio,Intercom, Data, Genlock, Ethernet, Tally is a new portable fibre interface designed for use in Outside Broadcast and special events. A mixture of video and audio signals are combined to provide a flexible and cost effective solution for many production applications. it is specifically designed to mount on the back of a broadcast camera offering full comms, control and genlock plus Multi-Channels 12G / 3G-SDI signals.
EFP to Fiber for Datavideo Intercom and Remote includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the Sony or Panasonic camera to the Base Station, Reverse video（SDI or CVBS, Datavideo Remote control data(Connect Datavideo MULTI-CAMERA CONTROL UNIT MCU-100 ), Datavideo intercom (Camera end be connected Datavideo HP1 Single-Ear Headset, OB end be connected Datavideo ITC-100 Talkback System), tally(2 colors, Camera end be connected Datavideo ext tally lamp TD3, OB end be connected Datavideo ITC-100 Talkback System),reverse CVBS or Genlock is optional. The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SM / MM tactical or SMPTE hybrid fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.
Features:
1) Handle all Pathological patterns
2) Automatic cable equalization to ensure signal integrity
3) 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
4) 10+Km on single mode fiber or 300m on multimode fiber transmission
5) Mic inputs with mute and pre-amps ,with amplifier for phones
Remote control with Datavideo MCU-100
Intercom and Tally with Datavideo ITC-100 Talkback System
6) V-mount or A-mount battery plate optional
Specifications:
General index
Work Temp | -25°C to 55°C |
Storage Temp | -40°C to 85°C |
humidity | 0 ~ 95% (non-condensing) |
Camera Optic Adaptor | |
Input power | DC 11~19V |
Power consumption | <8W |
Net weight | 1kg |
Appearance size | 188mm*116mm*45mm(without V-mount / A-mount) |
Optic Base Station | |
Input power | AC90~240V |
Power consumption | <20W |
Net weight | 3kg |
Appearance size | 19” 1U standard rack mount |
Optical：
Wavelength | 1310nm / 1550nm / CWDM |
Output Power | -6~-1dBm |
Rx sensitivity | <-18dBm |
Transmission Distance | SM fiber 10+km , MM fiber 300m |
Optical connector | Dul LC /FC/ST/SC/ Lemo / Neutrik (optional) |
SDI input/output:
Signal format | SMPTE 424M, SMPTE 292M, SMPTE 259M |
Data rate | 270Mbit/s - 1.48Gbit/s - 3Gbit/s |
Cable Equalization | Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
SDI interface | BNC 75 Ohm |
Intercom:
Camera Optic Adaptor | |
Interface | 3.5mm headset jack, Datavideo Headset |
Microphone | Mic inputs with mute and pre-amps |
Headphone | With amplifier and volume up or down |
Optic Base Station | |
Interface | 5pin XLR Male, be connected Datavideo Talkback System |
Tally:
Camera Optic Adaptor | |
Interface | 3.5mm headset jack, be connected Datavideo ext tally lamp |
Output | Green/Red 2 colors |
On: LED on Off: LED off | |
Optic Base Station | |
Interface | 5pin XLR Male |
Input | be connected Datavideo Talkback System |
Remote：
Camera Optic Adaptor | |
Interface | RJ45 Datavideo remote interface |
Data | RS422 /RS232/RS485 |
Optic Base Station | |
Interface | RJ45 Datavideo remote interface |
Data | RS422 /RS232/RS485 |
Panel diagram：
(for the large photo, please enlarge the same photo at the headline)
Camera Optic Adaptor' panels
Optic Base Station panel
