Introduction:

BY-SDI-114 SDI series fiber video converter is an ideal and economic solution for broadcasting or surveillance applications. It receives one SDI electrical input,

perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps,

1080p60).Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality.

Features:

• 1 Channel video and audio transmission of digital video signal over 10 Kilometers (6.2 miles) optic fiber

• Receiver with 1 Ch 3G-SDI and 1 Ch 1080P HDMI output

• Handles ALL pathological patterns; Automatic cable equalization to ensure signal integrity; Terminal block power input for industrial application

• Automatic reclocking   270Mbit/s - 1.48Gbit/s - 3Gbit/s

• Support signal type: 270Mbit/s to 3Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M standards

Specifications:

SDI input/output

Signal format:SMPTE 424M, SMPTE 292M, SMPTE 259M

Data rate:270Mbit/s - 1.48Gbit/s - 3Gbit/s

Cable Equalization:

Automatic cable EQ (Belden 1694A cable) 250 meters @ 270Mbit/s, 140 meters @ 1.5Gbit/s, 80 meters @ 3Gbit/s

SDI interface:   BNC 75 Ohm

Number of transmitter SDI channel: 1 Ch

Number of transmitter SDI Loopout: 1 Ch

Number of receiver SDI output channel: 1 Ch

Optical

Fiber interface: 1 x LC/PC

Transmitter wavelength:   1310 nm

Transmitter output power:-9~-3dBm

Receiver sensitivity-18dBm～0 dBm

HDMI output at Receiver

HDMI version:HDMI   1.3

HDMI resolution:1080p/1080i/720p/720i/576p/576i/480p/480i

Number of HDMI output Channel:1 Ch

Connector:HDMI, type A, female

Output cable length:≤20m AWG26 HDMI 1.3 standard cable

General index

Input power: DC 5V or 12V

Power consumption:<5W

Work Temp:-20°C to 70°C

Storage Temp:-40°C to 85°C

humidity:0 ~ 95% (non-condensing)

Case material:Aluminum

Net weight:500g /pair

Package:

1. 1 x transmitter with SFP optical module.

2. 1 x receiver with SFP optical module.

3. 2 x Power supply adapters with US/EU/UK/AU plug.

4. 1 x Manual

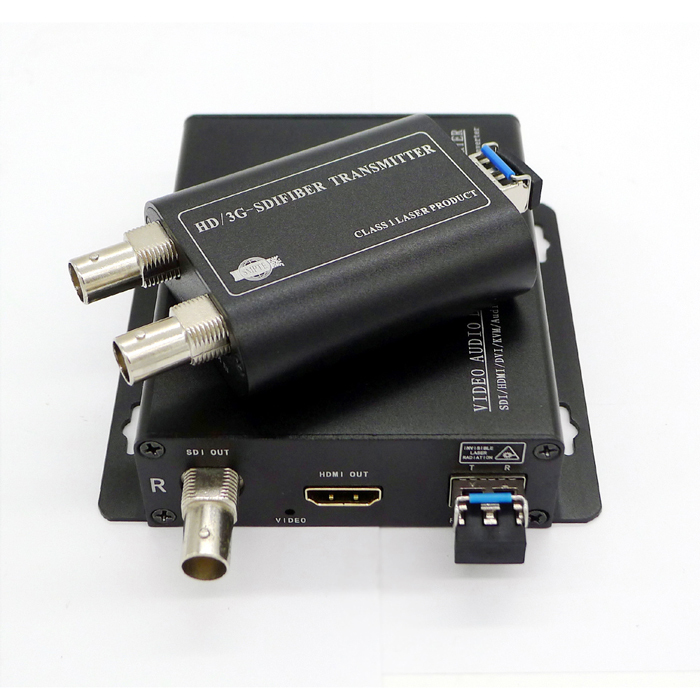

Front Panels & ConnectionDiagram:
